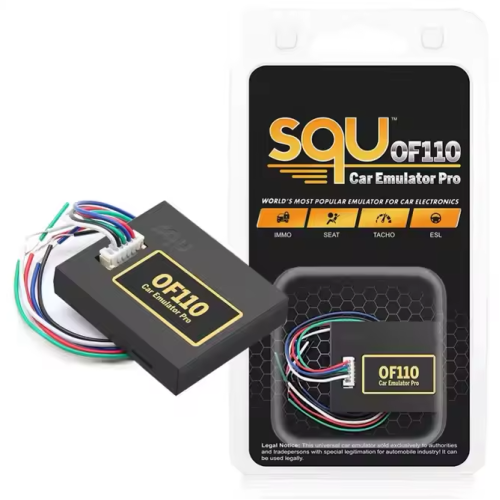

УНИВЕРСАЛЕН ЕМУЛАТОР SQU OF110

Универсален емулатор SQU OF110
Общо 110 програми:
81 IMMO OFF програми
21 програми за еърбег
8 Tachometer tester програми

Инструкции за работа

81 immo programs
21 seat occupancy sensor programs
8 tacho programs

The squ OF110 universal car emulator allows you to:
*Remove the original immobiliser signal
*Replace the original immobiliser signal
*Replace the ESL, enabling the car to start
*Check the EZS on the table
*Check the correctness of the airbag system
*Start the tacho on the table

The squ OF110 emulator includes 110 programs dedicated to hundreds of car models and types of ECU.

The vast majority of programs can be used multiple times. Program selection is effected by soldering jumpers from J1 to J7. To connect the emulator, please refer to specific installation manual.

Immo програми:
1.VAG4-V1
2.VAG4-V2
3.For VW BYPASS GOLD immo OFF
4.For VW automatic immo ON
5.For VW without CAN
6.For VW Hitachi
7.For VW -valve Code
8.For VW EDC15 immo OFF
9.For VW EDC15 immo ON
10.For VW EDC16 K-line Immo OFF
11.For VW EDC16 K-line Immo ON
12.For VW EDC16 CAN 1.9/2.0 OFF
13.For VW EDC16 CAN 1.9/2.0 ON
14.For VW EDC16 CAN 2.7/3.0 OFF
15.For VW EDC16 CAN 2.7/3.0 ON
16.For VW ME7 immo OFF
17.For VW ME7 immo ON
18.For BMW EWS 2/3
19.For BMW EWS 2/3 (use ISN)
20.For Chrysler
21.For Citroen,For Peugeot CAN
22.For Citroen,For Peugeot CAN V1
23.For Citroen,For Peugeot CAN V2
24.For Citroen,For Peugeot CAN (use pin)v1
25.For Citroen,For Peugeot CAN (use pin)v2
26.For Daewoo1
27.For Daewoo2
28.For Fiat without CAN
29.For Fiat with CAN-5SF/6F3 ECU
30.For FSO Polonez
31.For Honda
32.For Kia Sportage 2.OTD
33.For Mazda with 93C56
34.For Mercedes CR without CAN
35.For Mercedes CR1 with CAN WSP
36.For Mercedes CR1 with CAN EZ
37.For Mercedes CRl with CAN infrared
38.For Mercedes CR2 with CAN WSP
39.For Mercedes ESL
40.For Mercedes ESL 2
41.For Nissan NATS4/5
42.For Opel immo with HCO5
43.For Renault with CAN -ver 1
44.For Renault with CAN -ver 2
45.For Renault without CAN
46.For Renault without CAN old ECU
47.For Suzuki with X24C01 memory
48.For Suzuki with OKI memory
49.For Suzuki with 93C56 memory
50.For TMS374-For citroen,For Peugeot,For Renault
51.For Yamaha

Seat accupancy sensor програми:
1.For BMW:2007 to 2010 Europe:E60,E63,E64,E65,E70,E71,E81,E90,E92,E93
2 For BMW:1997 to 2007 Models from 1997 to 2003-e31 E36 E38, E39, E46, E53 Tachom er tester programs Models from 2003 to 2007-e60 E63 E65,E87 EO
3.For BMW: 1997 to 2007 Models from 1997 to 2003-e31 E36 E38, E39. E46 E53 Models from 2003 to 2007. E40 E43. E65,E87 E90
4. For Benz: E-class W211(2002-2004)with controller airbag Temic, s-class W220(2003-2005)
5. For Benz: E-class W211(2002-2004)with controller airbag Temic, s-class W220(2003-2005)
6. For Benz: A-class W168 (1997-2001),c-class ML with controller airbag TRW 1999, e-class W210 to 1999, e-class before lifting indicator Airbag OFF
7.For Benz: A-class W168(1997-2001)c-class w202(1999-2001),Vito W638 to 2003, ML with controller airbag TRW 1999, e-class W210 to 1999,e-class before lifting indicator Airbag OFF
8.For Benz: E-class W210(2000-2003)with indicator Airbag OFF, Vito W639(2002-2005), ML W163 as of 2000, a-class W168(2002-2005),S-class W220(2000-2003),c-class W203 to 2005 CLK W209, Vaneo
9.For Benz: E-class W210(2000-2003)with indicator Airbag OFF, Vito W639(2002-2005)ML W163 as of 2000, a-class W dass W220(2000-2003), c-class W203 to 2005 CLK W209, Vaneo
10.For Mini Cooper 2002-2005 v1
11.For Mini Cooper 2002-2005 v2
12.For Mazda: Premacy, mx-5, 626, 323, 6 v1
13.For Mazda: Premacy, mx-5, 626, 323, 6 v2
14.For Fiat:stilo V1
15.For Fiat:Stilo V2
16.For Mercedes: e-class w211 from 2004 to 2007 Temic,SL W230 models year 2004 only.SLK W171 from 2004 to 2011
17.For Mercedes: e-class W211 from 2003 to 2007,For Bosch contoller c-class W203 from 2006 to 2007 CLS W219 from 2005 to 2010. CLK W209 from 2006 to 2009, s-class W220 from 2002 to 2005, S- dass W221 year 2006 only
18.For Mercedes: e-class W211 from 2002 to 2003 with airbag ECUS:For Temic 002 820 35 26 Bosch 002 82029260285001 441
19.For Opel V1: Corsa C and Vectra C
20.For Opel V2: Astra G, Meriva A, Omega B FL Signum and Zafira A
21.For Ford: Mondeo 2001-2003

Tacho програми:
1. Audi Q7 and A6
2. Citroen C4 Picasso
3. EMF Display
4. Renault Kangoo 3 Display
5. Renault Scenc II, Espace IV Tacho
6. Renault Scenic Full
7. Renault Scenic III + Navi
8. VW Passat B6

Oil Reset Functions Feature:
Innovative one-click oil reset for VW, Audi, BMW, Mercedes Seat, Skoda, Volvo, etc.
Support engine oil, spark plugs, front brake pads, back brake pads, air conditioner, brake liquid, coolant liquid, vehicle checking etc. resetting for BMW. And the supported BMW models are F01/F02/F03/F04/F07/F10/F11/F12/F13/F18/F20/F30, etc.
Support Mercedes Benz new C Class, E Class models and Mercedes Benz VITO/VIANO/SPINTER.
Support the lifespan percentage resetting of engine oil for Buick, Cadillac etc.
Support Porsche Cayenne, Panamera till 2012
Support maintenance light reset for Volvo, Land Rover.

Oil Service Light Reset Coverage:
America: Buick, Cadillac, Chevrolet, Chrysler, Chevrolet/GMC, Ford/Mercury/Lincoln, Oldsmobile, Pontiac, Saturn, GM, Jeep and more…
European: VW, Audi, Porsche, BMW, Mercedes-Benz, Volvo, Land Rover, Peugeot, Citroen, SAAB, Seat, Skoda and more…
Asia: Toyota/Lexus, Nissan/Infiniti, Honda, Acura, Isuzu, Chery, Ford Transit, Roewe, MG and more…

Odometer Adjustment:
VW /AUDI/SEAT/SKODA, BUICK, CADILLAC, CHEVROLET, CHRYSLER, FORD, MAZDA, NISSAN, SUZUKI, KIA, HYUNDAI, JAGUAR, LAND ROVER, PORSCHE and more…

EPB Electrical Parking Brake Adaptation:
VW ( R36, CC, Magotan etc.), Audi ( A4L, A6L, Q5 etc.), Seat, Skoda and more…

Tire Pressure Warning Light Reset (Manual Operation):
Mercedes-Benz, GM, VW, BMW, Toyota and more… Timing Belt Light Reset (Manual Operation)

EEPROM Adapter Feature:
1. PIN Code Reading
2. ECU Initializing
3. Chip Programming


В случай на нередности в инсталацията на автомобила (пренапрежение, пад на напрежение, искрене на кабелите на свещите, утечки, прекъсване или окъсяване, дефектни модули) могат да възникнат дефекти и неправилно функциониране на емулатора, като частично изтриване на флаш паметта, изтриване на работните константи в еепром паметта, или частично или пълно изгаряне на елементи!

Внимание: Емулатора SQU НЕ е тестван и НЕ подлежи на подмяна!!!

Уважаеми колеги, Ако след монтаж на емулатора автомобила не пали, това не означава непременно че емулатора не работи! Проверете всички захранвания и маси на имабилайзера (терминал 15, 30, 31), ECU-то и бодито, К-линията и кановете между тях. Моля, не ми звънете, а си оправете проблемите по автомобила, често проблема не е за емулатор, а коренно различен! Задължително се диагностицира автомобила дали е с проблем в имото и е за емулатор, като закачите симулатора на емулатори: Тапа IMMO Bypass (кат. номер 682 на сайта). В него има всички програми за имо и кантар емулатори. Връзва се като емулатор (след като се избере правилната програма) и ако автомобила запали се монтира смело емулатор. Ако не запали се търси проблема обстойно, а не да виете като линейки и да ми звъните!!! Тапата е създадена с диагностична цел за имобилайзери и кантари, тя ви улеснява живота!
